What you should know first: The all-new Bevel tool has very little in common with the old tool - and leaves
almost nothing more to be desired! Bevel turns harsh edges and corners into flattened, rounded, soft
elements.
首先需要知道的是: 全新的斜面工具与旧工具几乎没有共同之处——而且几乎没有什么需要改进的地方!斜面将粗糙的边缘和角落变成扁平的、圆形的、柔软的元素。
The various component modes produce the following results:
各种组成模式产生以下结果:
Bevel works differently in each component
mode. 在每种组件模式下,斜面的工作方式不同
What the Bevel tool can do with points, edges and polygons is explained in the
description of the individual settings. A taste of possible edge bevels can be seen here:
斜面工具可以用点,边缘和多边形做什么在描述的个人设置。在这里可以看到可能的边缘斜面的味道:

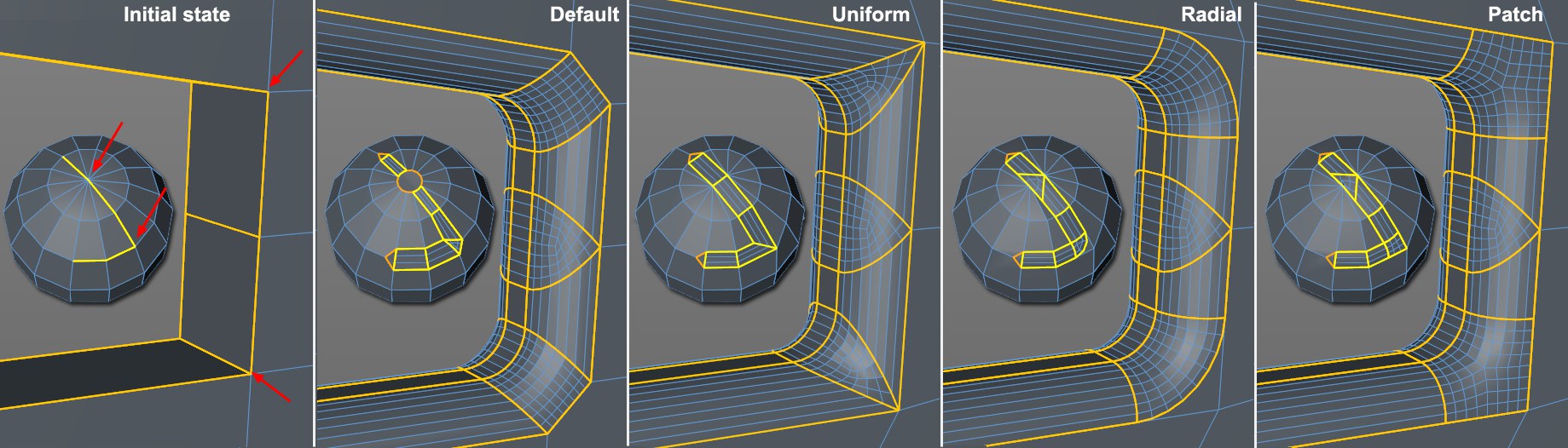

Various modes for beveling edges. 坡口边的各种模式
Use
使用
Note the tool handles’ various icons. 注意工具句柄的各种图标
The Bevel tool has a two-level interactivity integrated into it that works as
follows:
斜面工具集成了以下两个层次的交互性:
- First, click and drag in the Viewport to bevel the selected elements (only 首先,在 Viewport 中单击并拖动以斜切选定的元素(仅Offset 偏移量 will be modified interactively). Release the mouse button. 将被交互式修改)。释放鼠标按钮
- In the next
step, you can now interactively modify the tool’s 在下一步中,您现在可以交互式地修改工具的Offset 偏移量 and 及Depth 深度 settings by clicking and dragging on the corresponding colored
handles. 通过单击和拖动相应的彩色手柄设置
There are basically 3 white tool handles available in Use Edge mode (other modes are similar) that are
displayed in the Viewport:
在使用边缘模式下基本上有3个白色工具手柄可用(其他模式类似) ,显示在 Viewport 中:
- Those on both outer edges created by the 那些在两个外边缘创建的Offset 偏移量 value from the original edge
(Edge Offset Handle). 值从原始边缘(边缘偏移量句柄)
- Those on the new edge profiles that lie perpendicular to the previously
described handles, which can be used to adjust the 那些在新的边缘轮廓垂直于前面描述的句柄,可以用来调整Depth 深度 (Edge Depth
Handles). (边缘深度把手)
- The polygon handle that is only visible in Use Polygon mode that is used to adjust the 只在使用多边形模式下可见的多边形句柄,用于调整Extrusion 挤压
The following special features are available when in Use Polygon mode:
在使用多边形模式时,可以使用以下特殊功能:
- If a white polygon edge is grabbed, 如果抓取了白色多边形的边,Offset 偏移量 and 及Extrusion 挤压 can be adjusted separately by dragging the mouse horizonally and
vertically, respectively. 可以分别通过水平和垂直拖动鼠标进行调整
- If a polygon surface is grabbed, 如果抓取到一个多边形表面,Offset 偏移量 and
及Extrusion 挤压 can be adjusted simultaneously and proportionally to one another when
the mouse is dragged. 当鼠标被拖动时,可以同时并且成比例地相互调整
- You can bevel interactively by pressing the LMB+ one of the following keys
(move the mouse left or right in an empty region of the Viewport): 你可以通过按 LMB + 下面的一个键(在 Viewport 的空白区域向左或向右移动鼠标)来交互式地倾斜:
- Ctrl/Cmd: Extrusion 挤压 will be varied (only in Use
Polygon mode)
将是多种多样的(只在使用多边形模式)- Shift: Offset will be varied
- 偏移: 偏移量将有所不同
- no key: Offset and Extrusion will be varied simultaneously
- 无键: 胶印机和挤出机将同时改变
The following special features are available when in Use Edge mode:
在使用边缘模式下可以使用以下特殊功能:
-
Ctrl/Cmd
+click on a white edge lets you make sub-selections
( + 点击一个白色的边缘,让您作出子选择(Ctrl/Cmd+click again to deselect; click on empty region to deselect
all), which lets you define 再次单击取消选择; 单击空白区域取消选择所有) ,这样就可以定义Offset 偏移量 separately for the sub-selected edges (either
using the mouse or directly in the 分别为子选择的边缘(无论是使用鼠标或直接在Attribute Manager 属性管理器’s 是的Offset 偏移量 setting): 设定) :
Use sub-selection to define different 使用子选择来定义不同的Offset 偏移量 to individual edges without having to leave the tool to make a new
selection. 单独的边缘,而不必离开工具作出新的选择
You can also set values for individual edges separately without making sub-selections by pressing the
Ctrl/Cmd key.
您还可以单独设置各个边缘的值,而无需通过按 Ctrl/Cmd 键进行子选择。
- If a sub-selection has been made and you select another white edge (with a different 如果一个子选择已经做出,你选择另一个白色边缘(与不同的Offset 偏移量 value) using the 值)使用Ctrl/Cmd key, both offset
profiles will be modified proportionally - not by the same value. 关键字,两个偏移配置文件将被修改成比例-不是相同的值
