Path/Loop Cut 路径/回路切割Options 选择Interaction 互动Shaping 塑形

Interaction

互动

Reuse Cuts

再利用削减

Fast, complex loop cuts per mouse click. 快速,复杂的循环切割每鼠标点击

If you’ve created complex tool settings with multiple loop cuts, enabling this option will let you repeat same cut without having to re-define all settings.

如果您已经创建了复杂的工具设置与多个循环削减,启用这个选项将让您重复相同的削减,而不必重新定义所有的设置。

Bidirectional Cut

双向切割

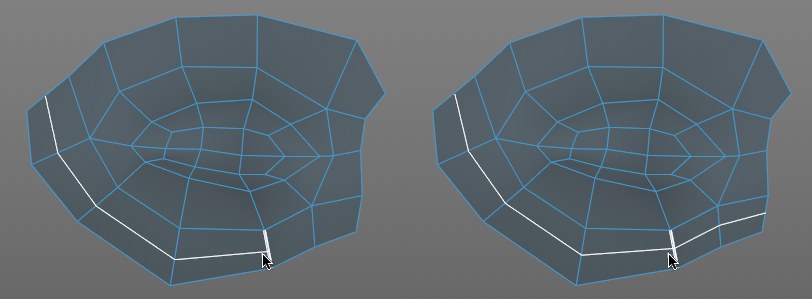

At left 左边Bidrectional Cut 标记切割 disabled, right enabled. 禁用,右启用

If this option is enabled, the cut will be set forth in both directions from the edge that was clicked. Otherwise it will continue in the direction of the cursor.

如果启用此选项,切割将从被单击的边缘向两个方向设置。否则它将继续沿着光标的方向运行。

No difference can be seen for a complete loop unless the Use Loop Range option is enabled and the cut is reduced using the Range setting.

除非使用循环范围选项被启用并且使用范围设置减少切割,否则在一个完整的循环中不会看到任何差异。

Symmetrical Cut

对称切割

If this function is enabled, a symmetrical double cut in the direction of the edge’s center will be made - if possible and if not impeded by other settings.

如果启用此功能,将在边缘中心的方向上进行对称的双切割——如果可能的话,如果不被其他设置阻碍的话。

Toggle Direction

切换方向

If Offset Mode is set to Edge Distance, this option can be used to select the side of the loop to which the cut should run parallel. The Distance value must then be adjusted accordingly.

如果偏移模式设置为边缘距离,此选项可用于选择切割应平行运行的循环的一侧。然后必须相应地调整距离值。

Stop Cut At N-gon
Stop Cut At Pole

停止削减在 n 角停止削减在极点

Options disabled at left, enabled at right. 选项在左边禁用,在右边启用

Use these options to define if the loop recognition should cease when it reaches an Ngon or Pole (options enabled) or continue (options disabled).

使用这些选项来定义循环识别是到达一个 Ngon 或 Pole (启用选项)时停止还是继续(禁用选项)。

Quantize Subdivision
Quantize Step[1..2147483647]

量化子部门量化步骤[1.2147483647]

Enable this option if you want the current edge to be quantized (uniform subdivision along the length of the edge, definable using the Quantize Step setting) when a new cut is made. The loop cut will then snap to one of the marked ,sections’.

如果您希望当前边缘被量化(沿着边缘的长度均匀细分,可以使用量化步骤设置来定义) ,则启用此选项。然后,环形切口将与标记的部分之一对齐。

Quantizing can also be done interactively for a section by pressing the Shift (see also here).

还可以通过按下 Shift 键交互地对某一部分进行量化(也请参阅此处)。

Use Loop Range
Range[1..2147483647]

使用 Loop RangeRange [1. . 2147483647]

If the loop recognition literally takes things too far, these settings can be used to define the number of polygons across which the recognition should take place. Enable the option and define a Range. If the Bidirectional Cut option is enabled, the cut will run in both directions along the respective edge.

如果循环识别实际上把事情做得太过了,这些设置可以用来定义识别应该发生的多边形的数量。启用该选项并定义范围。如果启用了双向切割选项,切割将沿着各自的边缘在两个方向上运行。

The range can also be done interactively by pressing the Ctrl/Cmd+Shift (see also here).

还可以通过按 Ctrl/Cmd + Shift 以交互方式完成范围(也参见这里)。
