Body Capture Object 身体捕捉对象Basic 基础Coord.Object 对象Matrices 矩阵
Object Properties
对象属性
捕捉
This is a link to the capture data.
这是到捕获数据的链接。
About the original capture data
关于原始捕获数据
When a capture is added to the scene all the capture data is stored internally in the c4d file itself.
当捕获添加到场景中时，所有捕获数据都内部存储在 c4d 文件本身中。
Changing this filename will cause the capture object to remove all the data and load in the data from the new file.
更改此文件名将导致捕获对象从新文件中删除所有数据并加载数据。
Do not change the filename unless you are sure about changing the capture data, since doing so will remove all the capture data from your current scene.
除非确定要更改捕获数据，否则不要更改文件名，因为这样做会从当前场景中删除所有捕获数据。
When you save the c4d file you no longer require the capture data itself.
保存 c4d 文件时，不再需要捕获数据本身。
Note: 注意:If you have deleted your capture data make sure to never make any changes to this captures field, otherwise you will lose the internal capture data. 如果已删除捕获数据，请确保永远不要对此捕获字段进行任何更改，否则将丢失内部捕获数据

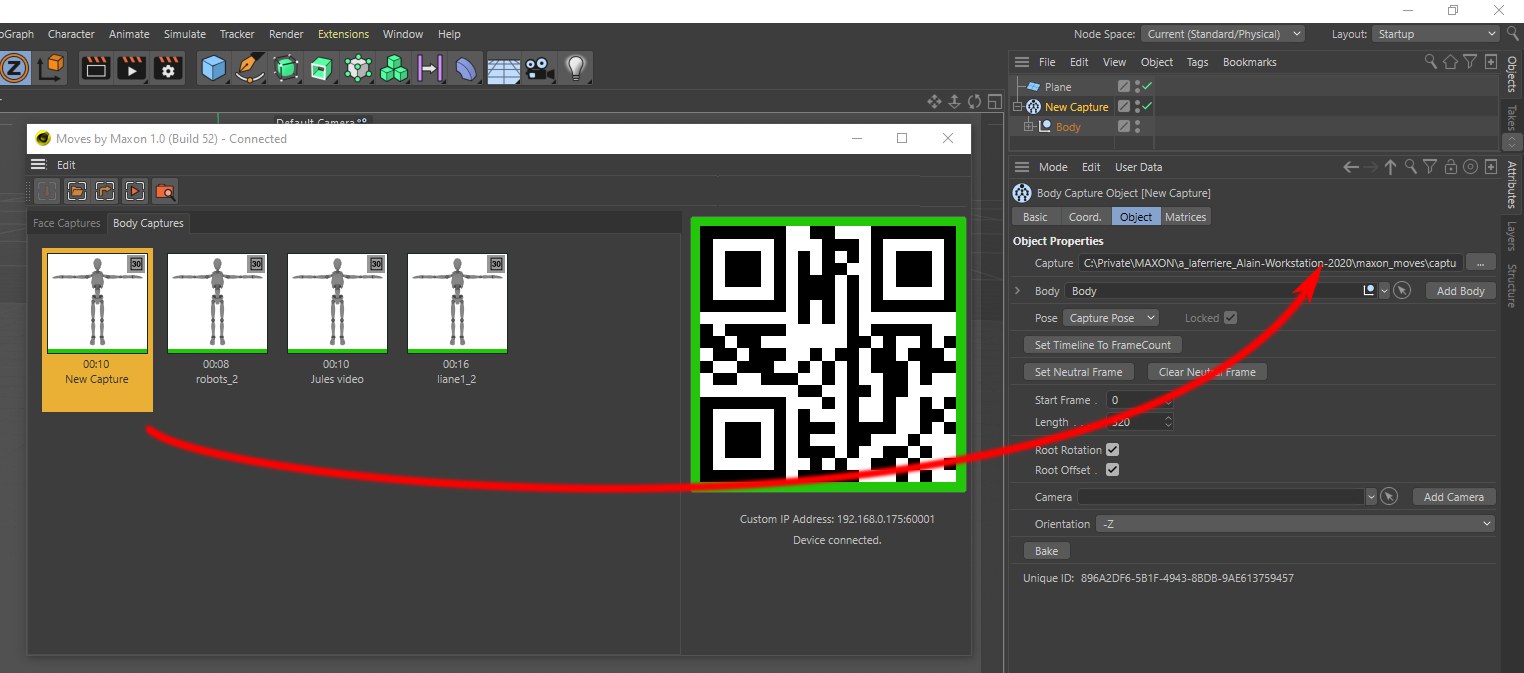

Drag and Drop to change the capture source
拖放以更改捕获源
You can change the capture data that is driving your object by dragging and dropping a capture directly from the Moves by Maxon Dialog into this field.
你可以改变捕获数据驱动你的对象通过拖放一个捕获直接从移动由 Maxon 对话框到这个字段。
身体
The position and orientation of the body. This is the same as what is applied to the Body Null object that is a child of the Body Capture Object.
身体的位置和方向。这与应用于作为 Body Capture Object 的子对象的 Body Null 对象相同。
添加主体
Creates a new Body Skeleton hierarchy under the Body Capture generator.
在 Body Capture 生成器下创建一个新的 Body Skeleton 层次结构。
摆姿势
This option lets you change from the animated motion data to the T-Pose.
这个选项可以让你从动画运动数据更改为 t 姿势。
锁上了
When Pose is set to T-Pose you can also unlock the joint transforms so that you can reposition and rotate them so that they fit your desintation character model. When lock it again, or change the Pose back to Capture Pose, the joints will be updated when playing back the animation.
当姿势设置为 t 型时，你也可以解锁关节变换，这样你就可以重新定位和旋转它们，使它们适合你的减速字符模型。当再次锁定它，或改变姿势回到捕获姿势，关节将更新时播放回动画。
设置时间线到 FrameCount
Changes the timeline length to be the same length as the capture.
将时间线长度更改为与捕获相同的长度。
The Length setting of this Body Capture Object will also be changed to the full length of the capture.
此 Body Capture Object 的 Length 设置也将更改为捕获的完整长度。
This will also set the documents FPS to be the same as the capture, ie 30 FPS or 60 FPS.
这也将设置文件的 FPS 为相同的捕获，即30 FPS 或60 FPS。
设置中性框架
Adjust the capture so that the currently viewed frame becomes centered at (0,0,0) with no rotation.
调整捕获，使当前观看的帧成为中心(0,0,0)没有旋转。
清晰的中性框架
Clears the netural frame so that the capture data reverts back to its original position and rotation.
清除中间框架，以便捕获数据恢复到其原始位置和旋转。
开始帧[0. . 2147483647]
Specify when to start playing back the capture.
指定何时开始回放捕获。
长度[0. . 2147483647]
Specify how many frames to playback from the capture. When it reaches the end it stops animating and effectively freezes the mesh at that last frames position.
指定要从捕获中回放的帧数。当它到达结束，它停止动画和有效地冻结网格在最后帧的位置。
根旋转
When enabled it will apply the captured rotation to the Root node of the skeleton. Disable to have no rotation on the Root node.
当启用时，它会将同步自转应用到骨架的根节点。禁用根节点上没有旋转。
根偏移量
When enabled it will apply the capture offsets to the Root node of the skeleton. Disable to ensure the Root node never changes its position.
如果启用，它将向骨架的根节点应用捕获偏移量。禁用以确保根节点永远不会更改其位置。
相机
A link field to hold a camera that will be controlled by the Body Capture Object. When looking through the camera it will be at the viewport of the iPhone (or iPads) camera.
一个链接字段，用于保存将由身体捕捉对象控制的摄像机。当透过相机看时，它会出现在 iPhone (或 ipad)相机的视口处。
To render at the same resolution and viewpoint as your phone set the rendering settings to be the same width and height as your iPhone (or iPad).
为了以与手机相同的分辨率和视点渲染，将渲染设置设置为与 iPhone (或 iPad)相同的宽度和高度。
Press the "Add Camera" button to add this camera.
按“添加相机”按钮添加这个相机。
添加相机
Adds a camera object as a child of the capture and adds it to the camera link field.
将相机对象作为捕获的子对象添加到相机链接字段中。
定向
Choose if you wish the body to be facing down the positive Z axis or the negative Z axis. The standard in C4D is for all models to be facing down the negative z axis and this is set by default.
如果你希望身体面向正的 z 轴或者负的 z 轴，可以选择。C4D 的标准是所有模型都面向负 z 轴，这是默认设置的。
- +Z + z: Sets the body to point down the positive z axis. : 设置主体向下指向正 z 轴
- -Z Z: Sets the body to point down the negative z axis : 设置主体向下指向负 z 轴
烘焙
Pressing bake will create a copy of the skeleton and bake all the joints for every keyframe for your current timeline duration. Baking will then allow you to use the C4D motion clips to help you mix and manager your motion captures.
按下烘培将创建一个骨架的副本，烘培所有的关节为每个关键帧为您当前的时间长度。烘焙将允许您使用 C4D 运动剪辑，以帮助您混合和管理您的运动捕捉。
唯一 ID:
This is the unique id for this capture. Every capture has a unique id and they will never clash. This id is used for the name of the folder where the capture data is stored and it is also prepended to all images and the sound file used by the capture.
这是此捕获的唯一 id。每个捕获都有一个唯一的 id，它们永远不会发生冲突。这个 id 用于存储捕获数据的文件夹的名称，也用于所有图像和捕获使用的声音文件的前缀。
