Extrude 挤压Options 选择 Tool 工具

Options

选择

Offset[-∞..+∞m]

偏移量[-∞ . . + ∞ m ]

Defines the length of the extrusion.

定义挤压的长度。

Offset Variation[0..+∞%]

偏移量变化[0. . + ∞% ]

Varies the length of the extrusion. This option is not available if Preserve Groups is enabled. The value you enter is subtracted from 100% to give the start of the variation range.

改变挤压的长度。如果启用了 Preserve Groups，则此选项不可用。您输入的值从100% 减去，以便给出变化范围的起始值。

0% - No deviation from the selected offset value.

0%-与选定的偏移量值无偏差。

60% - All selected polygons are extruded between 40% and 100% of the Offset value.

60%-所有选定的多边形被挤压在40% 到100% 的偏移量值之间。

100% - All selected polygons are extruded between 0% and 100% of the Offset value.

100%-所有选定的多边形被挤压成0% 到100% 的偏移量。

180% - All selected polygons are extruded between -80% and 100% of the Offset value.

180%-所有选定的多边形被挤压到偏移值的 -80% 到100% 之间。

Offset Variation 0% and 60%. 偏移量变化0% 和60%

Subdivision[0..+∞]

细分[0. . + ∞]

Subdivision set to 0 (left) and 3 (right). 细分设置为0(左)和3(右)

Defines the number of subdivisions along the extrusion.

定义沿挤压方向的细分数。

Create N-gons

创建 n 个图形

If this option is enabled, n-gons will be created along the length of the extrusion. Although you will not see edges along the length of the extrusion, the Subdivision setting is still applied internally.

如果启用此选项，将沿挤压的长度创建 n-gons。虽然您不会看到沿着挤压长度的边缘，但是仍然在内部应用“细分”设置。

Extruding Polygons

挤压多边形

Create Caps

创建帽子

Enable this option to create a cap at the base of the extrusion. This gives you a quick way to create a closed volume.

启用此选项可在挤出物的底部创建一个盖子。这为您提供了创建封闭体积的快速方法。

Preserve Groups

保护群体

If this option is enabled, the connected polygons will stay together during the extrusion, assuming they do not exceed the Maximum Angle relative to one another.

如果启用此选项，连接的多边形将在挤压期间保持在一起，假设它们不超过相对于彼此的最大角度。

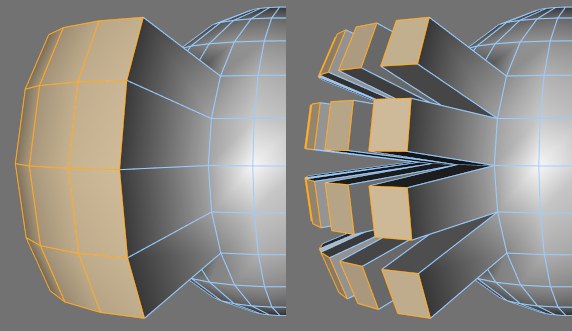

Preserve Groups enabled and disabled. 保留启用和禁用的组

Maximum Angle[0..180°]

最大角度[0. . 180 ° ]

If Preserve Groups is enabled, polygons not exceeding this angle to each other are kept together. Polygons exceeding this angle are broken apart during extrusion.

如果启用 Preserve Groups，则不超过这个角度的多边形保持在一起。在挤压过程中，超过这个角度的多边形会被分开。

Extruding edges

挤压边缘

To extrude the edges interactively, drag the mouse (this changes the Offset value, i.e., the length of the extrusion).

要交互式地挤压边缘，请拖动鼠标(这将更改偏移量值，即挤压的长度)。

With the mouse button still held down, you can Shift+drag to change the direction of the extrusion. If, at this point, you still keep the mouse button held down and release the Shift key and drag, you will change the Offset once more. So, by holding down or releasing the Shift key while you drag, you can change between adjusting the extrusion length and the extrusion direction.

随着鼠标按钮仍然举行下来，你可以移动 + 拖动改变方向的挤压。如果此时您仍然按住鼠标按钮并释放 Shift 键并拖动，您将再次更改偏移量。因此，通过按住或释放 Shift 键，你可以在调整挤压长度和挤压方向之间进行变化。

Rotation[-∞..+∞°]

旋转[-∞ . . + ∞ ° ]

Here you can set the angle of the edge extrusion. You can also change the extrusion angle interactively in the viewport by holding down Shift during the extrusion.

在这里你可以设置边缘挤压的角度。你也可以通过按住 Shift 键在挤压过程中交互地改变挤压角度。

Quantize Rotation
Angle[0..180°]

量化旋转角[0. . 180 ° ]

If Edge Snap is enabled, the extrusion angle will be constrained to the Angle setting. For example, to constrain the extrusion angle to steps of 45 degrees, enable the option and set Angle to 45°.

如果边缘管理单元启用，挤出角度将被限制到角度设置。例如，若要将挤压角度限制为45度，请启用该选项并将角度设置为45度。

Extruding Points

挤压点

Bevel[-∞..+∞m]
Bevel Variation[0..+∞%]

斜面[-∞ . . + ∞ m ]斜面变化[0. . + ∞% ]

Before extrusion (left), after extrusion without the 挤压前(左) ，挤压后无Shift 转移 key (center) and the base of the extrusion beveled with the Shift key held down and a value greater than 0 (right). 键(中心)和挤出斜面的基础与 Shift 键按下和大于0(右)的值

When extruding in point mode, the points will be extruded in the direction of the point Normals. The original points at the base of the extrusion will be beveled with a value of 0 initially. You can adjust the Bevel parameter interactively during the extrusion by holding down Shift while you drag.

当以点模式挤压时，点将被挤压向法线点的方向。在挤压的基础上的原始点将被斜面化，最初的值为0。你可以通过拖动按住 Shift 来交互式地调整挤压过程中的斜面参数。
