Motion Graphics Extrude Deformer 动态图形挤出变形器Basic 基础Coord.Object 对象Transform 转换Effectors 效果器
Object Properties
对象属性
转换
Two modes are available:
有两种模式可供选择:
来自 Root
Internally a row of several clones will be created along the length of the extrusion. The Effectors will then have an effect along the length of the extrusion.
在内部，将沿着挤压的长度创建一行多个克隆。然后效果器将沿着挤压的长度产生效果。
每个步骤
Internally, a clone will be created for each original polygon to be extruded. Subsequently, the transformation will take place once per extrusion step, according to the MoExtrude object’s settings, and once according to any Effector(s) applied.
在内部，一个克隆将创建每个原来的多边形被挤压。随后，根据 mo挤压对象的设置，每个挤压步骤进行一次转换，根据应用的任何效果器进行一次转换。

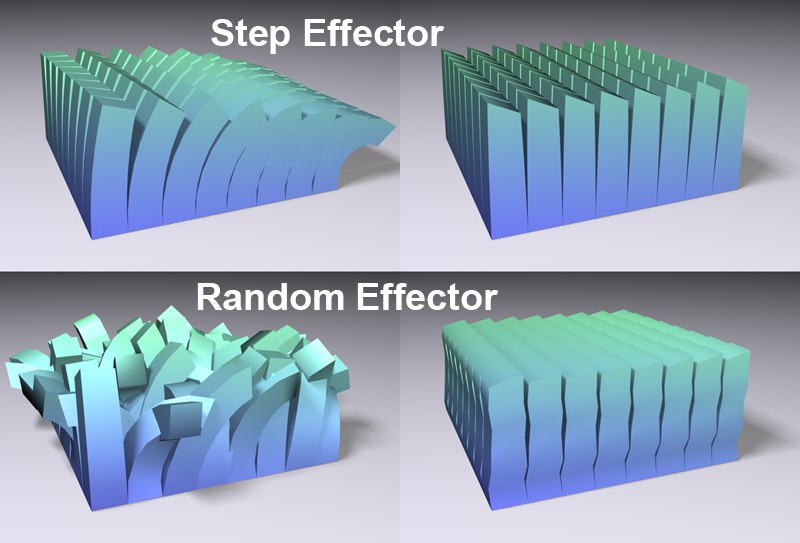

Images at left: 左图:Per
Step 每个步骤 mode. At right: 右边:From Root 来自 Root mode. 方式
In general, the best results can be achieved by using the Per Step setting in conjunction with most Effectors. From Root is best used when extruding using the Spline Effector or a spline defined in the field below.
一般来说，最好的结果可以通过使用每步设置与大多数效果器。当使用样条效果器或在下面的字段中定义的样条进行挤压时，最好使用根。
Extrusion Steps[0..2147483647]
挤压步骤[0. . 2147483647]
Use this setting to define the number of extrusion steps.
使用此设置可定义挤压步骤的数量。
Polygon Selection
多边形选择
If the extrusion should be limited to a selection tag only, place that tag into this field. Otherwise all polygons will be extruded.
如果挤压仅限于选择标记，则将该标记放入此字段。否则所有的多边形都会被挤压。
多边形选择
Drag a polygon selection tag into this field if the extrusion should be restricted to a particular selection. If no tag is present, all polygons will be extruded.
如果挤压应限制在特定的选择内，则将多边形选择标记拖动到此字段中。如果没有标签，所有多边形将被挤压。
扫描样条

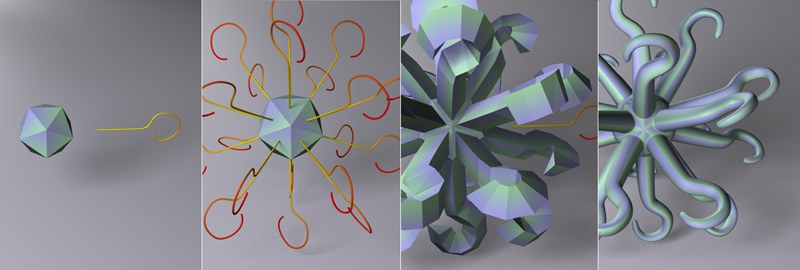

Extruding using a spline. If the end result is
subsequently placed into a Subdivision Surface object, a shape as pictured at the far right will be created. A
Step Effector was also applied. 使用花键挤压。如果最终的结果随后被放置到一个细分曲面物体中，那么最右边的图形就会被创建出来。还应用了步进效果器
This setting is only available in From Root mode. Placing a spline (any spline) into this field will cause the extrusion to take place along the length of the spline. Internally, copies of the clones will be arranged onto each polygon, in such a way that the first two spline vertices point in the direction of the surface Normals. The extrusion will then take place along these virtual spline copies. Spline subdivision and the number of extrude steps both have an effect on the extrusion itself.
此设置仅在“根”模式下可用。放置一个样条(任何样条)到这个领域将导致挤压发生沿花键长度。在内部，克隆的副本将被安排到每个多边形上，以这样的方式，前两个样条顶点指向表面法线的方向。然后沿着这些虚拟样条副本进行挤压。样条细分和挤压步数对挤压本身都有影响。
The spline will control the extrusion, limiting the effectiveness of the MoExtrude object’s Transformation tab settings. Instead, the Step Effector will be effective, e.g., to continuously narrow extruded elements to the tip of an object.
样条函数将控制挤压，限制 mo挤压对象的 Transformation 选项卡设置的有效性。相反，步骤效果器将是有效的，例如，不断缩小挤压元素的尖端的一个对象。
