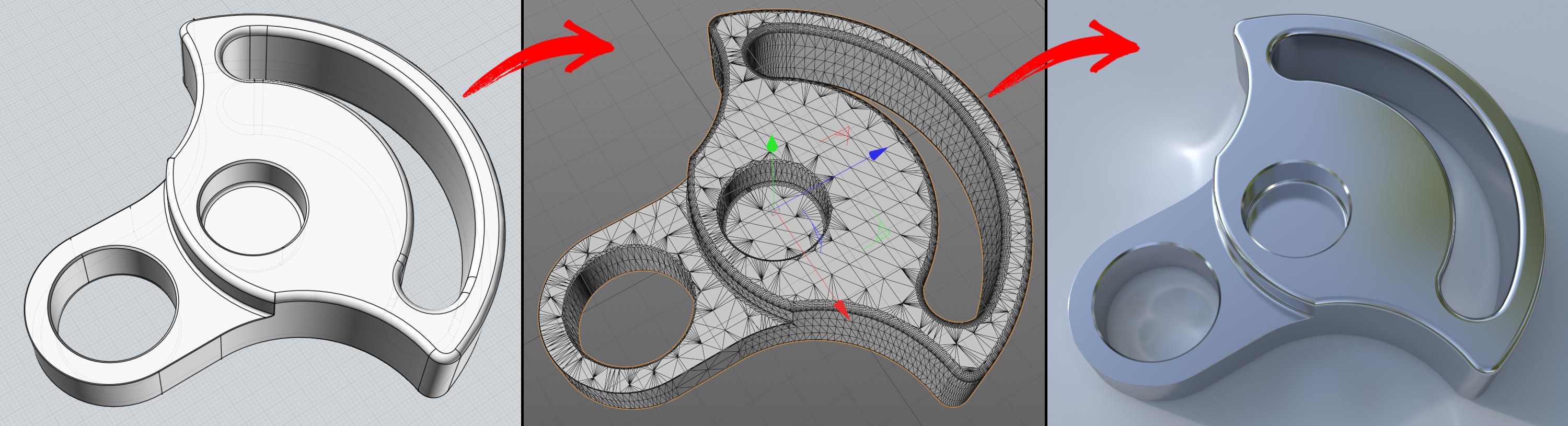

Until now, the import of numerous types of CAD files was very arduous. With the introduction of Cinema 4D R20, the most important CAD file formats can be opened directly in Cinema 4D. The objects are tessellated (loaded as splines), i.e., converted to a polygon mesh. Instances are maintained.

直到现在，导入众多类型的 CAD 文件都是非常艰巨的。随着 Cinema 4D R20的引入，最重要的 CAD 文件格式可以直接在 Cinema 4D 中打开。对象是棋盘状的(加载为样条) ，也就是说，转换为多边形网格。实例得到维护。

Several settings are also available with which the tessellation can be adjusted (more or fewer polygons = precise or less precise version of the NURBS surfaces).

有几种设置也可用于调整镶嵌(或多或少的多边形 = 精确或不太精确的 NURBS 曲面版本)。

Cinema 4D can open the following CAD formats:

Cinema 4D 可以打开以下 CAD 格式:

• IGES: *.igs, *.iges 伊格斯: * . igs，*
• Step: *.stp, *.step, *.p21 步骤: * . stp，* . Step，* . p21
• JT: *.jt JT: *
• Solidworks: *.sldprt, *.sldasm, *.slddrw 3. Solidworks: * . sldprt，* . sldasm，* . slddrw
• Catia V5: *.catpart, *.catproduct, *.cgr 5: * . catpart，* . catproduct，* . cgr

The import settings are almost identical for all of these formats. A brief description of how to prepare imported files for rendering can be found here .

所有这些格式的导入设置几乎完全相同。关于如何准备导入的呈现文件的简要描述可以在这里找到。
